FEATURES

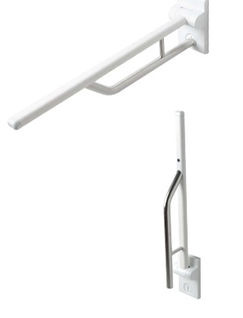

HUG Folding Grab Bar , Removable + Moveable
G18JCS07xx – 24”
G18JCS08xx – 28”
G18JCS09xx – 33”

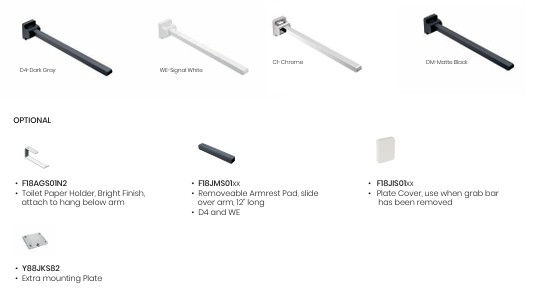

Color / Finish: C1-Chrome, D4-Dark Gray, WE-Signal White, DM-Matte Black
Materials: Stainless Steel arm, ABS & aluminum flange cover
• Grab bar comes in 3 lengths: 24”, 28” and 33”
• 330-pound vertical load capacity and 20 pound horizontal load capacity
• Mounting plate is 4” wide and 5” high
• Sleek and elegant grab bar
• Folding grab bar is removeable from wall with a plate cover sold separately below
• Designed not to pinch fingers in the folding flange – for added safety
• Install an extra mounting plate in other location in order to move this between locations as needed
Optional
F18AGS01N2
• Toilet Paper Holder, Bright Finish, attach to hang below arm
F18JMS01xx
• Removeable Armrest Pad, slide over arm, 12” long
• D4 and WE
F18JIS01xx
• Plate Cover, use when grab bar has been removed
Y88JKS82
• Extra mounting Plate
Folding Grab Bar, Anti-Microbial, Vinyl coated
G25JCS49xx
Color / Finish: W1-White, D1-Black, D2-Stone Gray, I1 Ivory, I2-Biscuit
Materials: Zinc-plated steel with stainless steel f lange, Vinyl
• 33 ½ ” long, 7 ½ ” high.
• Mounting flange is 2 ½” high and 5 ¼” wide
• 254-pound load capacity
• Anti-microbial protection in vinyl coating
• Soft and warm to the touch
• Optional toilet paper holder
• Vinyl coating is warm to touch, and has a superior non-slip grip
Folding and Rotating Grab Bar with No-Pinch Flange and Anti-Microbial Protection
G41JCS01xx – 24”
G41JCS03xx – 28”
G41JCS46xx – 34”
Color / Finish: W1-White, D1-Black, D2-Light Gray, I2-Biscuit
Materials: Stainless steel and Vinyl coated zinc-plated steel, ABS
• 24” and 28” long grab bars have 330-pound load capacity
• 34” long grab bar has 265-pound load capacity
• Bar folds up and rotates to the side to lay flat against the wall
• Anti-microbial protection in vinyl coating. Easy cleaning use water only
• Warm and soft to touch
• Narrower space between top and bottom bar prevents a child from getting their head stuck
• No-Pinch flange means it is impossible to pinch your finger
• Mounting plate is 9 ¼” high and 4 ½ ” wide
• Tension hinge prevents bar from falling
• Optional upgrade to add Armrest - order G41JCS06, G41JCS08 OR G41JCS11. ordered from Italy as needed OPTIONAL F17AGN03
• Removable Toilet Paper Holder
Folding Grab Bar with No-Pinch Flange and Anti-Microbial Protection
G41JCS09xx – 24”
G41JCS10xx – 28”
G41JCS47xx – 34”
G41JCS48W1 – 36” - Extra Long Grab Bar
Color / finish: W1-White, D1-Black, D2-Light Gray, D4-Dark Gray, I2-Biscuit
Materials: Stainless steel, Vinyl coated zinc-plated steel, ABS
• 24” and 28” grab bars have 330-pound load capacity
• 34” grab bar has a 265-pound load capacity
• 36” grab bar has a 250-pound load capacity and meets requirements for senior living-in white only
• No-Pinch flange will never pinch your finger and the narrower space between top and bottom bars keep a child from getting their head stuck for added safety
• Anti-microbial protection in vinyl coating. Easy to clean.
• Mounting plate is 9 ¼” high and 4 ½ ” wide
• Tension hinge prevents bar from falling
OPTIONAL F17AGN03
• Removable Toilet Paper Holder
Stainless Steel Folding Grab Bar
G55JCS12N1 – 24”
G55JCS14N1 – 32”
Color / Finish: N1-Satin/Brushed
Materials: Stainless Steel
• 24” grab bar has a 330-pound load capacity
• 32” grab bar has a 265-pound load capacity
• Stainless steel will not rust.
• Use near toilet, stairway, bed or in the shower
• Mounting flange is 9 ½ ” tall and 3 ½ ” wide
• Adjustable tension prevents grab bar from falling. Stays up well
• Mounting hardware not included, will need four ¼’’ x 2½ ” stainless steel lag bolt screws
• 304 Stainless Steel, 18 gauge, 1.2 mm thick
OPTIONAL F17AGN03
• Removable Toilet Paper Holder
Extra Strong Folding Grab Bar with Support Leg, Vinyl Coated
G41JCS74W1 – 27 ½”
G41JCS75W1 – 33 ½”
Color / Finish: W1 – White
Materials: Vinyl coated zinc-plated steel, stainless steel mounting plate, nylon cover
• Extra Strong folding grab bars have a 661-pound load capacity
• Extra reinforcement joints
• Floor standing grab bar with position lock will not slip
• Jointed floor-standing grab bar has height-adjustable foot
• Height from top of grab bar to floor is 33 ½”
• Grab bar diameter is 1 ¼”
• Vinyl coating provides anti-microbial protection
• Vinyl is warm to the touch and has a superior non-slip grip
• Call for availability
Folding Grab Bar on Floor Mounted Pedestal
G01JCS52W1 – 24”
G01JCS53W1 – 31”
Color / Finish: W1-White
Materials: Vinyl coated zinc-plated steel
• Stands 33” above the floor, open space 5” between bars
• 24” has a 330-pound vertical load capacity
• 31” has 265-pound vertical load capacity
• Horizontal load capacity is 88-pounds - when pulling towards you from side
• Anti-microbial protection in vinyl coating. Easy to clean
• Great choice if no wall space available.
• Mounting plate goes into floor, measures 5 5/16” square
OPTIONAL F17AGN03
• Removable Toilet Paper Holder
Folding Grab Bar with Floor Support Leg
G41JCS18xx – 24”
G41JCS19xx – 28”
G41JCS20xx – 34”
Color / Finish: W1-White, D1-Black, D2-Stone Gray, D4-Dark Gray, I1-Ivory, I2-Biscuit
Materials: Vinyl coated zinc-plated steel
• 24” and 28” long grab bars have a 330-pound load capacity
• 34” grab bar has a 265-pound capacity
• Anti-microbial protection in vinyl coating. Easy to clean
• No-Pinch flange means it is impossible to pinch finger when grab bar is folding
• Narrower opening between top and bottom bar make it safer for kids
• Mounting plate is 9 ¼” high and 4 ½ ” wide
• Optional toilet paper holder F17AGN03xx
• Call for availability
OMNIA Folding and Removable Grab Bar
G19JCS01xx – 24”
G19JCS02xx – 28”
G19JCS03xx – 33”
G19JCS11xx – 24” with toilet paper holder
G19JCS12xx – 28” with toilet paper holder
G19JCS13xx – 33” with toilet paper holder
Color / Finish: WE–Signal White, DD-Graphite Gray, N2–Polished Stainless
Materials: 304 Stainless Steel, Aluminum, ABS
• Grab bar comes in 3 lengths: 24”, 28” and 33”
• Folding grab bar is easily removable from the wall
• Plate cover for mounting plate is available when the grab bar is removed, optional
• Load capacity for 24” and 28” grab bar is 330 pounds
• Load capacity for 33” grab bar is 265 pounds
• Mounting plate measures approximately 7 ¾” high, 4 ¼” wide
• Sleek and elegant – choice of three finishes for top bar and wall flange
• The bottom support bar is always stainless
• Call for availability
OPTIONAL F19JIS01xx
• Plate Cover
• use when grab bar has been removed
Y88JKS99
• Extra mounting plate
• use if moving between two locations
Stainless Steel Locking Support Grab Bar
G56UGS01N1 – Satin Finish
G06UGS01W2 – Painted White
Color / Finish: N1-Satin/Brushed, W2-Painted White
Material: Stainless steel
• 17 ½” wide, 12” deep
• 450-pound horizontal load capacity when someone pulls on the grab bar
• 250-pound vertical load capacity, when someone pushed down on grab bar
• Bar folds up or down for storage and locks in place with a pin when extended
• Helpful for caregivers use, place where they need support or bracing
• Mount across from toilet and use to pull up or lower down
• Designed for pulling and lowering
• Won’t rust so can be used in a shower
