FEATURES

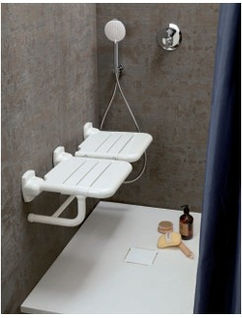

ADA Bench Folding Shower Seat with Nylon Slats
G02JDS22xx
Color / Finish: W1-White, D2-Light Gray, D1-Black
Materials: Stainless Steel mounting flange, Zinc-plated steel frame, Nylon seat
• Seat is 31 ½ ’’ wide, 15’’ wide deep and 9” high
• 450-pound load capacity
• Installation hardware included for woods stud install
• Multiple colors available
• ADA rated
• Anti-microbial nylon seat
• Lifetime warranty
• Call for availability
ADA L-Shaped Folding Nylon Shower Seat
G02JDL30xx - Left G02JDR30xx - Right
Color / Finish: W1-White, D2-Light Gray, D1-Black
Materials: Stainless-Steel mounting flange, Zinc-plated steel frame, Nylon seat
• Seat is 26 ½” wide, 19 ½” and 12 ¼” deep, 9” high
• 450-pound load capacity
• Mounting hardware included for wood or concrete installation
• Nylon slats prevent pinching and allow water to drain
• Lifetime warranty
• ADA rated
• Anti-microbial nylon seat
• Call for availability
ADA L-Shaped Folding Nylon Shower Seat with Spacer
G02JDL29xx - Left
G02JDR29xx - Right
Color / Finish: D2-Light Gray, W1-White, D1-Black
Materials: Stainless Steel mounting flange, Zinc-plated steel frame, Nylon seat
• Seat is 31 ½” wide, 19 ½” and 12 ¼” deep, 9’’ high
• 450-pound load capacity
• ADA rated
• Choose either right or left version
• Anti-microbial nylon seat
• Lifetime warranty
• Call for availability
ADA Folding Shower Seat with White HPL Seat
G25JDS22xx Color / Finish for support & flanges: W1-White, D1-Black, D2-Light Gray
Materials: Stainless Steel mounting flange, Zinc-plated steel frame, HPL seat
• Seat is 31 ½” wide, 13 ¾” deep and 9” high
• 450-pound load capacity
• Seat is always white with speckles. Color options for flange & support bars
• ADA rated
• HPL (High Pressure Laminate) seat provides excellent strength and stability
• Anti-microbial vinyl over steel frame
• Lifetime warranty
• Tension hinge prevents seat from falling
ADA L-Shaped Folding Shower Seat with White HPL Seat
G25JDL29xx - Left
G25JDR29xx - Right
Color / Finish for support & flanges: W1-White, D1-Black, D2-Light Gray
Materials: Zinc-plated steel frame with vinyl coating, HPL Seat
• Seat is 31 ½” wide, 20 ¾” and 15 ¾” deep, 9” high
• 450-pound load capacity
• Frame and flanges available in colors listed above
• Seat is always white with speckles
• Tension hinge prevents seat from falling
• Vinyl over steel frame is anti-microbial
• Installation hardware for wood stud included
• ADA rated
• Lifetime warranty
ADA Extra Strong, L-Shaped Commercial HPL Shower Seat with Leg
G55JDS35W8 – Safety Version
Color / Finish: W8-White
Materials: Stainless Steel mounting flange & frame, HPL seat
• Seat is 31 ½” wide, 22 ¾” deep, 19” high
• Safety Version – 550-pound load capacity with 2 wall mounting points and free-standing legs
• Seat is always white with speckles
• ADA – for both commercial use or residential installation
• Installation hardware included for wood stud installation
• Reversible for right or left orientation
• Lifetime warranty
ADA Extra Strong, Bariatric L-Shaped Commercial HPL Shower Seat with Leg
G55JDS31W8 – Bariatric Version
Color / Finish: W8-White
Materials: Stainless Steel mounting flange & frame, HPL seat
• Seat is 31 ½” wide, 22 ¾” deep, 19” high
• Bariatric Version – 1,000-pound load capacity with 3 wall mounting points and free-standing legs
• Seat is always white with speckles
• ADA – for both commercial use or residential installation
• Installation hardware included for wood stud installation
• Reversible for right or left orientation
• Lifetime warranty
Economic L-Shaped Folding Shower Seat with Legs, Stainless Steel and HPL
G56UHS03 - L-Shaped – 31 ½” wide
Colors / Finish: None – Stainless Steel and HPL
Materials: Stainless Steel mounting flange & frame, HPL seat
• Seat is 31 ½” wide, 15 ¾” deep 22 ¾” deep
• 360-pound load capacity on edge & 600-pound load capacity at center line
• Legs and floor support 75% of weight load capacity
• Legs are adjustable, 17” to 19”
• Seat is reversible to either left or right orientation
• 100% Stainless Steel frame and mounting flange
• No finger pinch points
• Seat is strong & stable HPL (High Pressure Laminate) and always white with speckles
• Installation hardware included for wood stud mount
• Tension hinge locatded on flange and leg, prevents the seat from falling
• ADA rated
• Rust proof and Lifetime warranty
Economic Large Shower Seat with Legs, Stainless Steel and HPL
G56UHS02 – Large Seat - 31 ½” wide
Materials: Stainless Steel mounting flange & frame, HPL seat
• Large seat is 31 ½” wide, 14 ¼” deep, 17” to 19” high
• 600-pound load capacity
• These seats are highly recommended – excellent quality and economically priced
• Legs support 75% of the weight load capacity
• Seat in HPL (High Pressure Laminate) and is white with speckles
• 100% stainless steel frame and mounting flange is rust proof
• Tension hinge located on flange and leg, prevents seat dropping and there are no finger pinch points
• Installation hardware included for wood stud mount
• ADA rated and exceeds load capacity requirements
• Lifetime warranty
• Seat does not require reinforced wall
Economic Extra Large Shower Seat with Legs, Stainless Steel and HPL
G56UHS05 – Extra Large Seat - 40” wide
Materials: Stainless Steel mounting flange & frame, HPL seat
• Extra Large seat is 40” wide, 20”deep, 17” to 19” high
• 600-pound load capacity
• This seat may work as a transfer bench - see technical sheet
• Legs support 75% of the weight load capacity
• Seat in HPL (High Pressure Laminate) and is white with speckles
• 100% stainless steel frame and mounting flange is rust proof
• Tension hinge located on flange and leg, prevents seat dropping and there are no finger pinch points
• Installation hardware included for wood stud mount
• ADA rated and exceeds load capacity requirements
• Lifetime warranty
ADA Extra Strong, Bariatric L-Shaped Folding Shower Seat with HPL Top and Folding Legs
G02JDL31W1 – Left-handed
G02JDR31W1 – Right-handed
Color / Finish: W1-White
Materials: Stainless Steel mounting flange, Zinc-plated steel frame, HPL (High Pressure Laminate) seat
• Seat is 31 ½” wide, 15 ¾ and 22 ½” deep, 17 ¾” high
• 1,000-pound vertical load capacity
• Mount into wall studs or blocking
• Legs provide added support
• Folds to just 5 1/8” deep
• Select either left ot right orientation
• ADA rated
• Lifetime warranty
